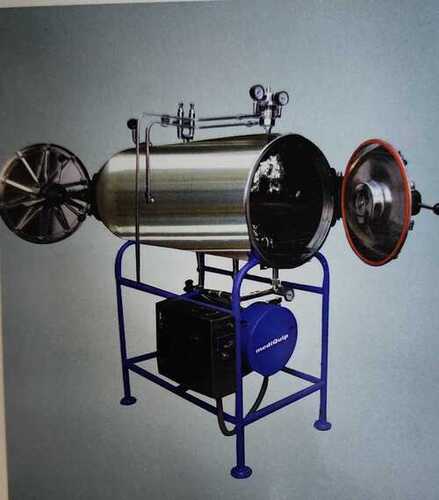

Autoclave (16x24) Double Door High Speed Horizontal

Product Description

Carries CE Mark.

End ring hydraulically formed without joints to sustain required pressure. All other joints Argon Arc Welded.

For the Modern Hospital, Double Door Sterilizers are installed when non sterile and sterile area separate.

Material is loaded from non sterile side and after sterilization it is removed from sterile side.

Unique Multiport valves located at the top controls all operations manually.

Two safety valves spring loaded and a pressure switch provided to prevent accidental pressure build up.

Works on 134Degree C at 32 psi (2.1 kgf cm square)

Low water level protection for heaters.

Pressure lock device for the door.

Hydrostatically tested 2 times the working pressure.

Best suited for rapid sterilization of instruments for Cardiac, Ortho, Neuro and Urology.

Instruments come out dry after the cycle.

Power          - 18 KW, 440V, 3-Phase

First Cycle   - 35 minutes, 20 minutes preheating time

                    - 15 minutes actual time

Subsequest - 09 minutes
